Delivering enhanced connectivity with increased security for your process
BioLinkĀ® modular overmolding combines the best attributes of conventional overmolding with the flexibility and speed of processing often associated with traditional mechanical connections. It also offers enhanced process robustness over conventional overmolding while facilitating additional secure connectivity to processing steps, such as filters.
BioLinkĀ® modular overmolding consists of two basic components: (1) lengths of M-FlexĀ® TPE tubing with overmolded unitized end-fittings and (2) polypropylene modules and filter adaptors injection molded out of the exact same resin as the bulk of our filter product portfolio. All connections are created via automated welding processes that result in permanent thermal bonds between fluid path components with a smooth inner bore.
BioLinkĀ® modular overmolding technology can be applied to the tubing sizes and connectivity indicated below. (Any size tubing can be adapted to any module or filter.)
Tubing Sizes | Connectivity |
---|---|
1/8ā³ ID x 1/4ā³ OD | Union Module |
1/4ā³ ID x 7/16ā³ OD | Single Bifurcation Module (T-fitting) |

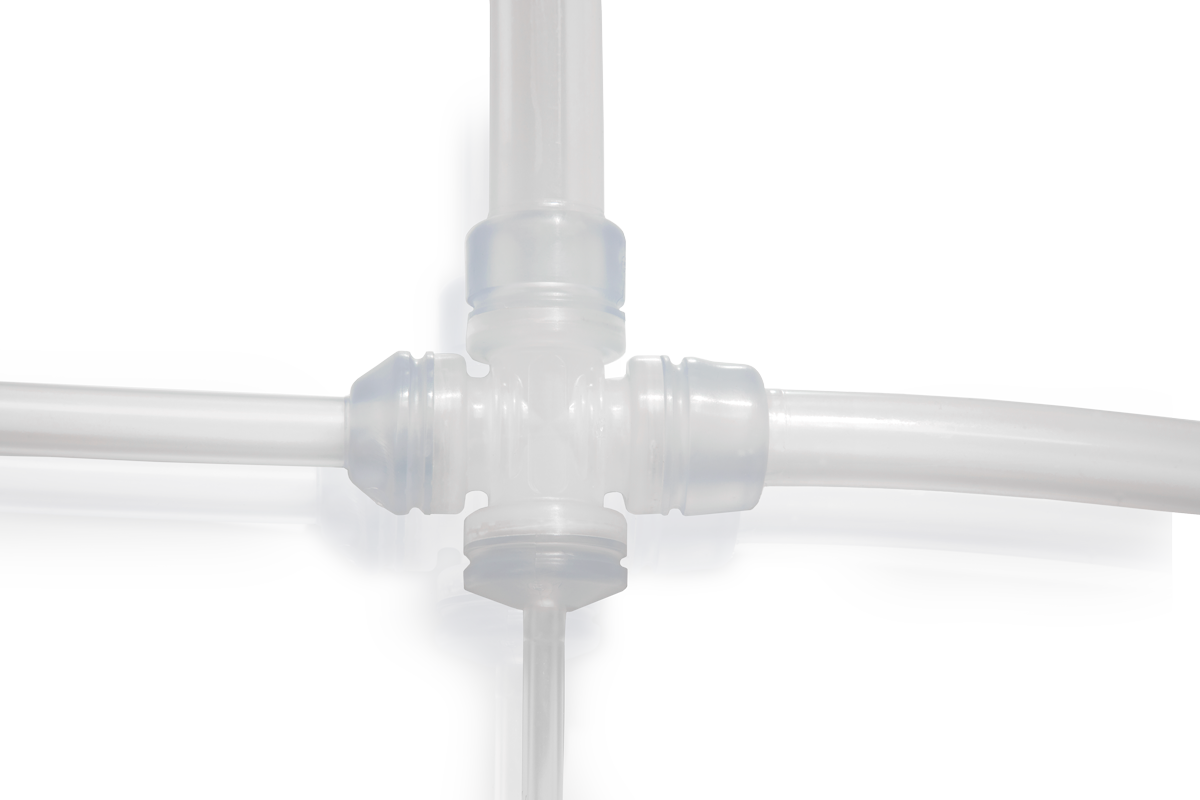

3/8ā³ ID x 5/8ā³ OD | Dual Bifurcation Module (X-fitting) |
1/2ā³ ID x 3/4ā³ OD | Filters |
- Reduced number of fluid contact materials
- Increased process robustness
- Enhanced connectivity to filters and SGTs (single-use gauge tees)
