Industrial T-Style Single Element Filter Housing

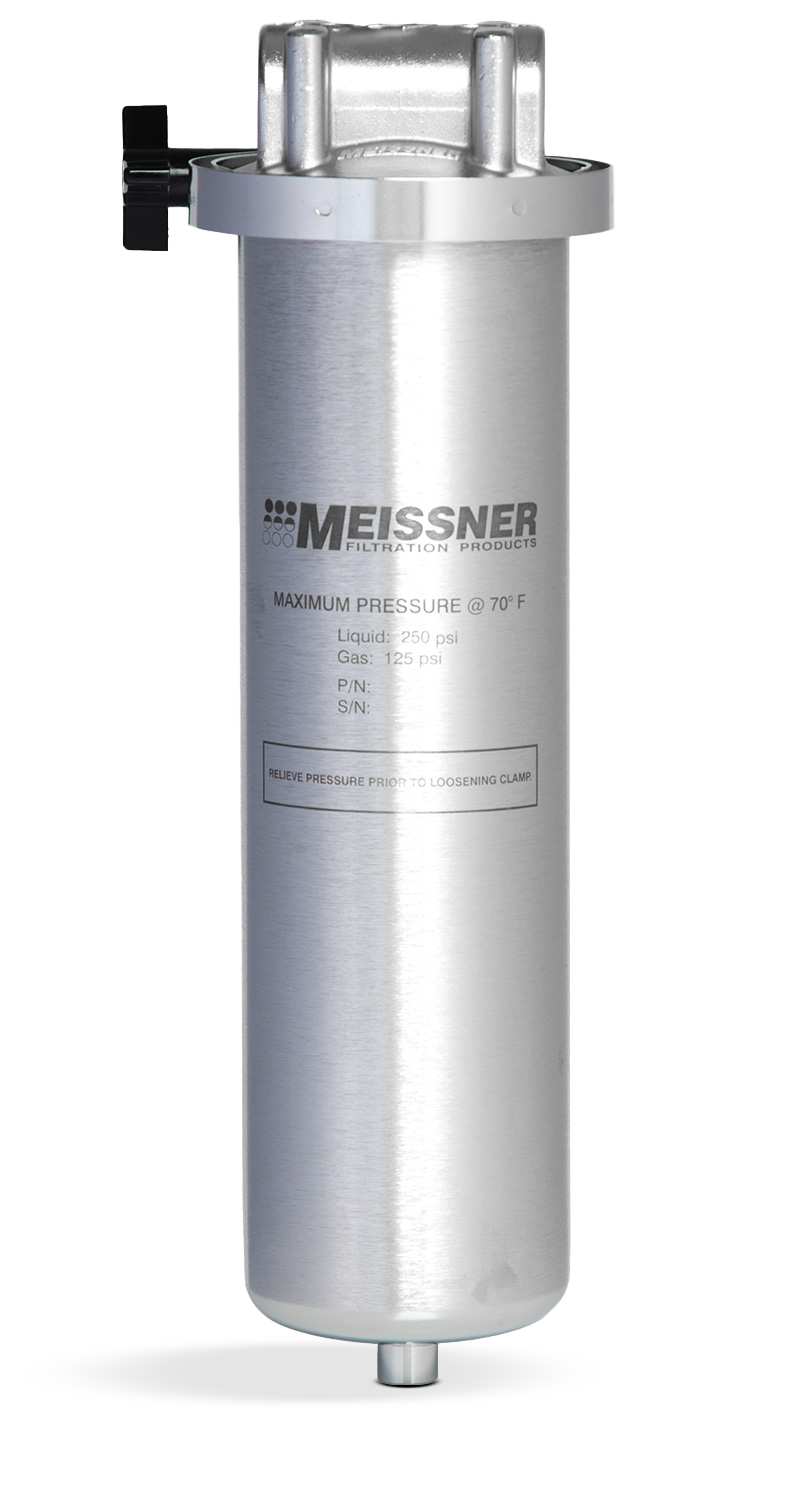

1-round industrial, T-style, 316L stainless steel filter housing.
This general purpose, single cartridge filter housing is designed for controlling particulate and microbial contamination in liquids and gases. This housing offers high reliability, security and economy for continuous or point-of-use service as well as for small and medium batch processing applications.
Design Features
- Accepts one 5″, 10″, 20″, or 30″ length cartridge filter Flow rates to 20 gpm for liquids, or 300 scfm for gases
- Electropolished 316L stainless steel construction gives maximum durability and corrosion resistance
- Quick-release closure clamp allows easy disassembly and fast cartridge filter replacement
- Effective in a wide range of process applications
- Three configurations available to fit many cartridge filter styles
- Sealing surfaces on investment cast head are machined and finished to exacting tolerances
- Upstream and downstream ports permit venting, draining, sampling, or pressure gauge placement
Frequently Asked Questions
What is the Industrial T-Style Single Element Filter Housing?
The Industrial T-Style Single Element Filter Housing is a general purpose, single-cartridge filter housing made from electropolished 316L stainless steel. It is designed to control particulate and microbial contamination in liquids and gases, offering high reliability, security, and economy for continuous or point-of-use service, as well as small and medium batch processing applications.
What applications is the Industrial T-Style Single Element Filter Housing used for?
This filter housing is effective in a wide range of process applications involving the control of particulate and microbial contamination in liquids and gases. It is suitable for continuous or point-of-use service and is commonly used in small and medium batch processing applications where reliable filtration is required.
What specifications or sizes are available for the Industrial T-Style Single Element Filter Housing?
The housing accepts one cartridge filter in lengths of 5″, 10″, 20″, 30″, or 40″. It supports flow rates up to 20 gpm (76 L/min) for liquids and 300 scfm (510 Nm¬≥/h) for gases. The inlet/outlet connections are 3/4″ or 1″ NPT, with 1/4″ NPT vent and drain ports. The housing is constructed from electropolished 316L stainless steel and rated for 250 psig liquid service and 125 psig air/gas service at 70¬∞F (21¬∞C).
What makes the Industrial T-Style Single Element Filter Housing unique?
Its electropolished 316L stainless steel construction provides maximum durability and corrosion resistance. The housing features a quick-release closure clamp for easy disassembly and fast cartridge replacement. It offers three configurations to fit various cartridge filter styles, with machined and finished sealing surfaces on an investment cast head. Upstream and downstream ports enable venting, draining, sampling, or pressure gauge placement, enhancing operational flexibility.
Can the Industrial T-Style Single Element Filter Housing be customized?
Yes, Meissner Filtration Products offers custom engineering of the Industrial T-Style Single Element Filter Housing to meet unique design or process requirements. Customizations include thermal jacketing, specialized inlet/outlet connections such as sanitary or RF flanges, and other specialty connection types and sizes. Customers can request a housing with a unique combination of features tailored to their specific needs.
What other products are commonly used with the Industrial T-Style Single Element Filter Housing?
Common complementary products include Single-Use Systems, M-Flex® TPE Tubing, M-Sil™ Braid Reinforced Silicone Tubing, UltraClamp™ Sanitary Clamps, and Universal Lab Stand. These products support fluid path assembly, tubing, and system integration in biopharmaceutical manufacturing workflows.
