Duraclear^® Polypropylene Depth-type Microfiber

An innovative alternative to ordinary depth filters that provide the economics of a depth filter with the superior performance of a pleated cartridge filter.

Duraclear^® filters are pleated polypropylene (PP) depth type filters designed to provide exceptionally high dirt holding capacity and long service life. The Duraclear^® filter medium is a network of continuous, self-bonded PP microfibers manufactured with precisely controlled fiber uniformity and density. The resulting filter porosity is extremely uniform, precise and consistent in service. Duraclear^® filters do not channel or unload trapped contaminants under even the most extreme process conditions. Duraclear^® filters contain no resin binders to break down or leach out in service.

Design Features

Nominal ratings ratings from 1 µm to 50 µm
Self-bonded, non fiber-releasing filter media
Pleated construction
Superior flow rates
High dirt holding capacity
No binders, adhesives or surfactants
Wide chemical compatibility
Long service life

What are the typical applications?

Duraclear^® filters are most appropriate for use when high quality filtration and economy are important.

Typical applications for the industrial-grade, black vinyl end cap configuration include:

Plating
Chemicals
Photographic chemicals
Printed circuit boards
Metal finishing
Coatings
Utilities
Inks
Oil and gas

Typical applications for the FDA-acceptable, blue vinyl end cap configuration include:

Water purification
Bottled water
Food and beverage
Cosmetics

Typical applications for the polypropylene end cap configuration include:

Chemicals
Solvents
Coatings
Food & beverage
Biologicals & diagnostics

Typical applications for the polyurethane end cap configuration include:

Water purification
Pre-R.O.
Cooling towers

Filter Configurations Available for Duraclear^®

UltraSnap® Filter Assembly Configuration

UltraSnap^® Filter Assembly

UltraCap® H.D. Capsule Filter Configuration

UltraCap^® H.D. Capsule Filters

UltraCap® Capsule Filter Configuration

UltraCap^® Capsule Filters

Small Cartridge Configuration

Small Cartridges

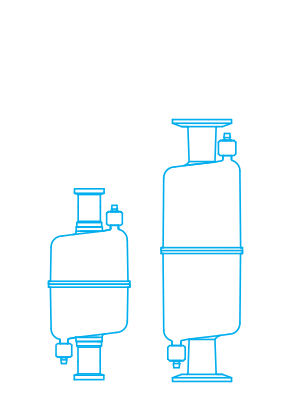

Standard Capsule Filter Configuration

Standard Capsule Filters

Medium Capsule Filter Configuration

Medium Capsule Filters

Mini Capsule Filter Configuration

Mini Capsule Filters

50 mm Filter Device Configuration

50 mm Filter Devices

25 mm Syringe Filter Device Configuration

25 mm Syringe Filter Devices

Disc Filter Configuration

Disc Filters

Typical water flow rates per 10" cartridge

Duraclear^® 360° View

360 10 Inch Duraclear® Filter with Industrial Grade Black Vinyl End Cap

10" Duraclear^® Cartridge with the Industrial Grade Black Vinyl End Cap

360 10 Inch Duraclear® Filter with FDA Acceptable Blue Vinyl End Cap

10" Duraclear^® Cartridge with the FDA Acceptable Blue Vinyl End Cap
