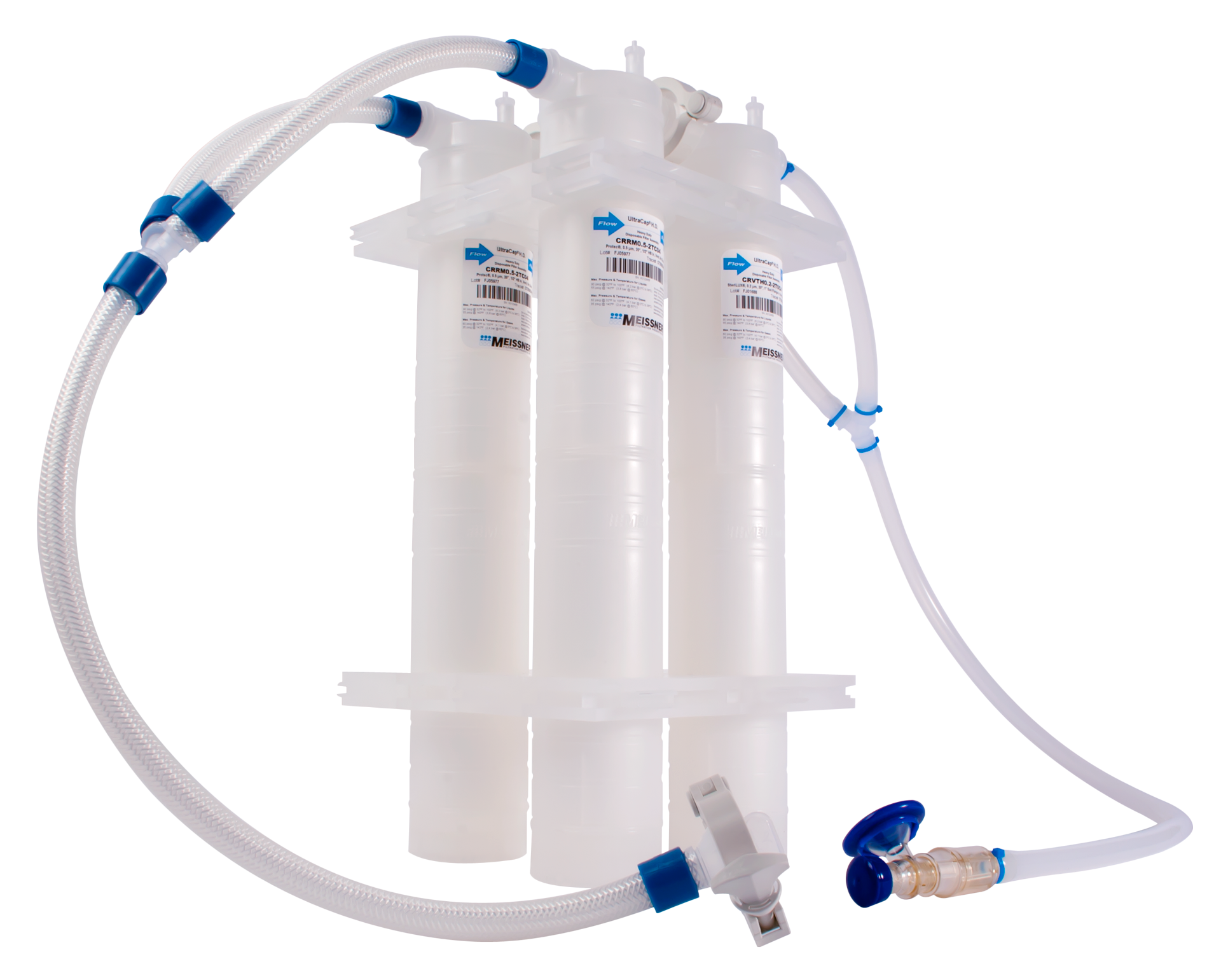

UltraSnap® Filter Assembly

A single-use filtration system that configures pre and final filters into a plug and play solution.

Flexible in design, the UltraSnap® filter assembly configures UltraCap® H.D. high capacity capsule filters ranging from 10 to 50 inches into a single-use filtration system. UltraSnap® filter assembly designs can be optimized to accommodate processing requirements for flow rate, throughput and retention ratings. Securing multiple pre and final filters into a pre-assembled single-use solution, the UltraSnap® assembly arrives ready for immediate use. For added convenience, the entire filter assembly can be pre-sterilized.

The UltraSnap® assembly is a highly configurable filter system. The filter assembly can be optimized for clarification through sterile filtration applications, making the scale of single-use filters virtually unlimited.

Meissner’s UltraSnap® filter assembly eliminates the time and expense associated with change-out of filters from stainless steel housings and the associated cleaning and reassembly of the filter/housing unit(s). This time saved from cleaning operations results in less downtime between filtration runs, and improved productivity. The UltraSnap® filter assembly has very low hold-up volume, which minimizes product loss during change-outs and ensures maximum product recovery. UltraSnap® support stands and carts can be designed to integrate the filter assembly into the end-user’s unit operations.

Meissner offers a FlexCessory™ stainless steel accessory fork to support the UltraSnap® assembly, which can be mounted to the Dual End-Ported Biocontainer Cart for easy transport. The accessory fork can also be mounted to the FlexCessory™ Universal Laboratory Stand for table top applications.

Design Features and Benefits
  • Available pre-sterilized (gamma irradiated) and ready-to-use for plug and play convenience
  • Specialized UltraSnap® connectors configure multiple pre and final capsule filters in series or parallel to maximize design space and remove limits on the scale single-use filters
  • 10″, 20″, 30″, 40″ and 50″ capsule filter length options permit fast, easy scale-up and scale-out
  • Available with Meissner’s full range of sterilizing-grade filtration, clarification, purification and prefiltration media with absolute removal ratings from 0.04 µm to 99 µm

Typical Pharmaceutical Applications

  • Sterile filtration or prefiltration of serum
  • Sterile filtration or prefiltration of tissue culture media
  • Sterile filtration or prefiltration of microbiological growth media
  • Sterile filtration or prefiltration of any viscous biological liquids
  • Sterile filling operations with disposable plastic biocontainers

Typical Microelectronics Applications

  • Filtration of metal and oxide CMP slurries
  • Filtration of chemical rinse solutions
  • Filtration of acids, bases, solvents
  • Filtration of stripping solutions
  • DI water Filtration

Filter Media Options

Membrane Filters for Air/Gas (Hydrophobic)

Additional Filter Configurations

Available UltraSnap Filter Configuration
UltraSnap® Filter Assembly
Available UltraCap H.D. Filter Configuration
UltraCap® H.D. Capsule Filters
Available UltraCap Filter Configuration
UltraCap® Capsule Filters

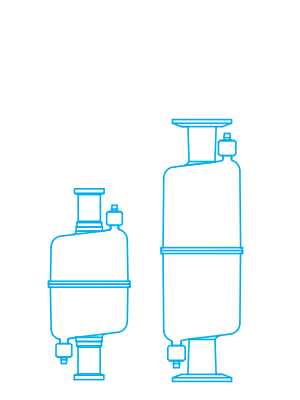

Available Standard Capsule Filter Configuration
Standard Capsule Filters
Available Medium Capsule Filter Configuration
Medium Capsule Filters
Available Mini Capsule Filter Configuration
Mini Capsule Filters
Available Small Filter Configuration
Small Cartridges
Available 50 mm Vent Filter Configuration
50 mm Filter Devices
Available 25 mm Syringe Filter Configuration
25 mm Syringe Filter Devices
Available Disc Filter Configuration
Disc Filters

Ultrasnap® 360° View

360 UltraSnap Assembly
360 Ultrasnap® on FlexCessory® Cart
