UltraCap® H.D. Capsule Filter

A high capacity, high flow capsule filter that provides the ease and convenience of a single-use assembly in a heavy duty housing.

UltraCap® H.D. (Heavy Duty) capsule filters are designed for processing mid to large size liquid batches and gases under even the most challenging operating conditions. The heavy duty capsules withstand considerably higher operating pressures and are more robust than conventional UltraCap® capsule filters.

UltraCap® H.D filters are destined to become the workhorse for demanding batch and continuous processing applications in the biopharm, pharmaceutical, food & beverage, and microelectronics industries.

The capsule assemblies are available with a choice of filter media for applications ranging from liquid prefiltration and final filtration to gas venting. Filter sizes include 10-inch, 20-inch, 30-inch, 40-inch and 50-inch lengths for rapid scale-up. The capsule assemblies are available with sanitary flange, hose barb or Flaretek® inlet and outlet connections. UltraCap® H.D. options include a gauge port for pressure measurement and a filter stand for fast and easy installation. Additionally, an SPD (Sterile Process Design) vent is offered on the inline UltraCap® H.D.

The UltraCap® H.D. capsule filter assemblies are gamma sterilizable and free of sharp edges, making them the preferred choice for Meissner’s TepoFlex® biocontainers, and other single-use systems.

For applications requiring multiple UltraCap® H.D. capsule filters, Meissner’s UltraSnap® filter assembly is recommended. This assembly secures pre and final capsule filters into a single-use system that is ready for immediate use.

Design Features

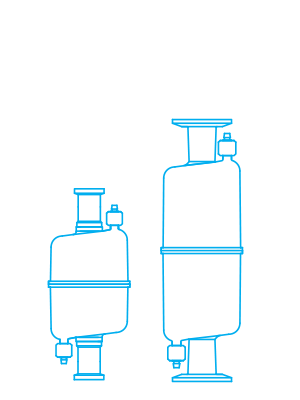

  • T-style and Inline design versions
  • 10", 20", 30", 40" and 50" capsule filter lengths
  • Available gamma-irradiated
  • Available with Meissner’s full range of sterilizing-grade filtration, clarification, purification and prefiltration media with absolute removal ratings from 0.04 µm to 99 µm
  • Removal ratings from 0.04 µm to 99 µm
  • Extremely low hold-up volume
  • Sanitary end-fittings ensure secure, reliable connections
  • Recessed drain
  • Available with or without vent

User Benefits

  • Convenient – Complete, Ready-to-Use
  • Integral System – Combines Filter and Housing
  • Cuts Costs – Eliminates Housing Cleanup and Cleaning Validation
  • Eliminates autoclaving with pre-gamma-irradiated UltraCap® H.D. filters
  • Conserves Valuable Product – Low-Holdup Design
  • Permanently assembled, one-piece construction – Eliminates Bypass
  • Use for liquid, gas or vent filtration
  • Prevents operator contact with dangerous liquids in chemical applications
What are the typical applications?

Typical Pharmaceutical Applications

  • Sterile filtration or prefiltration of serum
  • Sterile filtration or prefiltration of tissue culture media
  • Sterile filtration or prefiltration of microbiological growth media
  • Sterile filtration or prefiltration of any viscous biological liquids
  • Sterile filling operations with disposable plastic biocontainers
  • Sterile tank venting

Typical Microelectronics Applications

  • Filtration of metal and oxide CMP slurries
  • Filtration of chemical rinse solutions
  • Filtration of acids, bases, solvents
  • Filtration of stripping solutions
  • DI water Filtration
  • Venting of storage tanks

Filter Media Options

Filter Configuration Options

UltraSnap® Filter Assembly Configuration

UltraSnap® Filter Assembly

UltraCap® Capsule Filter Configuration

UltraCap® Capsule Filters

Cartridge Configuration

Filter Cartridges

Small Cartridge Configuration

Small Cartridges

Standard Capsule Filter Configuration

Standard Capsule Filters

Medium Capsule Filter Configuration

Medium Capsule Filters

Mini Capsule Filter Configuration

Mini Capsule Filters

50 mm Filter Device Configuration

50 mm Filter Devices

25 mm Syringe Filter Device Configuration

25 mm Syringe Filter Devices

Disc Filter Configuration

Disc Filters

Configuration Dimensions

UltraCap® H.D. 360° View

360 20 Inch UltraCap® H.D. T-Style Capsule Filter
360 10 Inch UltraCap® H.D. Inline Capsule Filter With 1 Inch Hose Barb Inlet/Outlet Connection
360 10 Inch UltraCap® H.D. Inline Capsule Filter
360 10 Inch UltraCap® H.D. T-Style Capsule Filter
