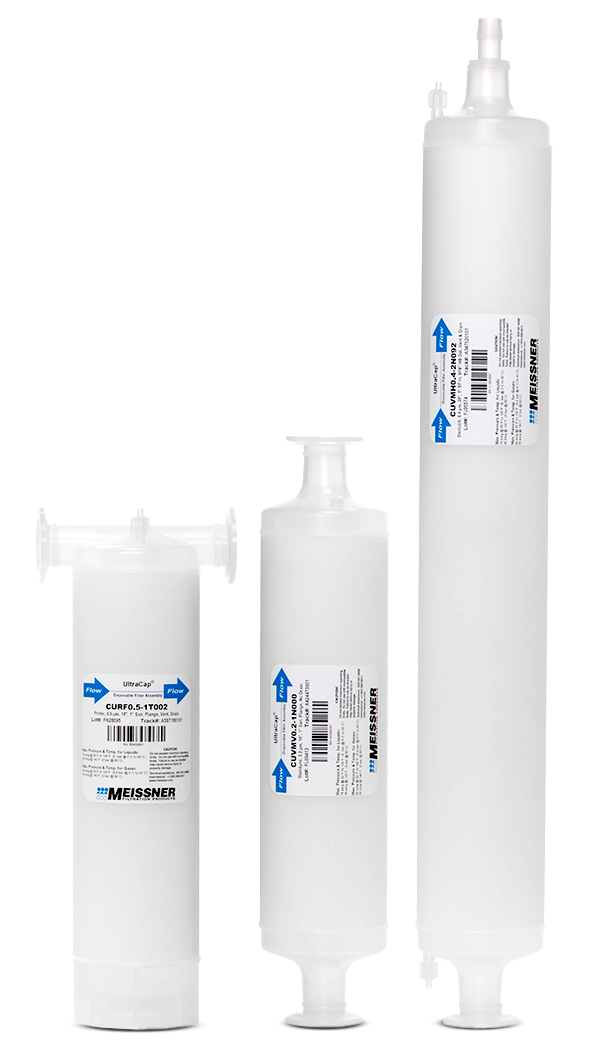

UltraCap® Capsule Filter

A high capacity capsule filter that meets a range of critical application requirements for a single-use, high-flow, high-throughput filter system.

Designed for final filtration and prefiltration in the pharmaceutical and microelectronics manufacturing industries, the UltraCap® filter capsule is available with a wide range of hydrophilic and hydrophobic filter media. This disposable filter is available in T-style and inline configurations in lengths up to 30 inches, for optimum flow rates, throughput and ease of scale-up. A more robust heavy duty version, UltraCap® H.D., is available for the most demanding process environments.

Design Features
  • T-style and Inline capsule design versions
  • 10″, 20″, 30″ lengths
  • Disposable system
  • Available gamma-irradiated
  • Available with Meissner’s full range of sterilizing-grade filtration, clarification, purification and prefiltration media with absolute removal ratings from 0.04 µm to 99 µm
  • Removal ratings from 0.04 µm to 99 µm
  • Extremely low hold-up volume
  • Sanitary end-fittings ensure secure, reliable connections
  • Recessed drain
  • Available with or without vent
User Benefits
  • Convenient – Complete, Ready-to-Use
  • Integral System – Combines Filter and Housing
  • Cuts Costs – Eliminates Housing Cleanup and Cleaning Validation
  • Eliminates autoclaving with pre-gamma-irradiated UltraCap® filters
  • Conserves Valuable Product — Low-Holdup Design
  • Permanently assembled, one-piece construction — Eliminates Bypass
  • Use for liquid, gas or vent filtration
  • Prevents operator contact with dangerous liquids in chemical applications

Typical Pharmaceutical Applications

  • Sterile filtration or prefiltration of serum
  • Sterile filtration or prefiltration of tissue culture media
  • Sterile filtration or prefiltration of microbiological growth media
  • Sterile filtration or prefiltration of any viscous biological liquids
  • Sterile filling operations with disposable plastic biocontainers
  • Sterile tank venting

Typical Microelectronics Applications

  • Filtration of metal and oxide CMP slurries
  • Filtration of chemical rinse solutions
  • Filtration of acids, bases, solvents
  • Filtration of stripping solutions
  • DI water Filtration
  • Venting of storage tanks

Filter Media Options

Additional Filter Configurations

Available UltraSnap Filter Configuration
UltraSnap® Filter Assembly
Available UltraCap H.D. Filter Configuration
UltraCap® H.D. Capsule Filters
Available UltraCap Filter Configuration
UltraCap® Capsule Filters

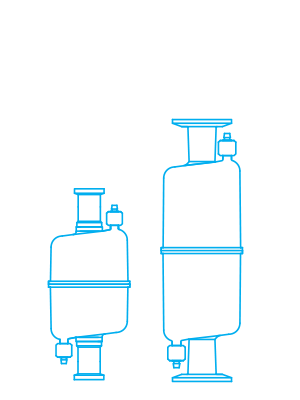

Available Standard Capsule Filter Configuration
Standard Capsule Filters
Available Medium Capsule Filter Configuration
Medium Capsule Filters
Available Mini Capsule Filter Configuration
Mini Capsule Filters
Available Small Filter Configuration
Small Cartridges
Available 50 mm Vent Filter Configuration
50 mm Filter Devices
Available 25 mm Syringe Filter Configuration
25 mm Syringe Filter Devices
Available Disc Filter Configuration
Disc Filters

Configuration Dimensions

UltraCap T-Style Capsule Filter Diagram
UltraCap Inline Capsule Filter Diagram

UltraCap® 360° View

360 UltraCap 10 Inch T-Style
360 UltraCap 10 Inch inline
